I have attached Manual that will help you troubleshoot the sensor

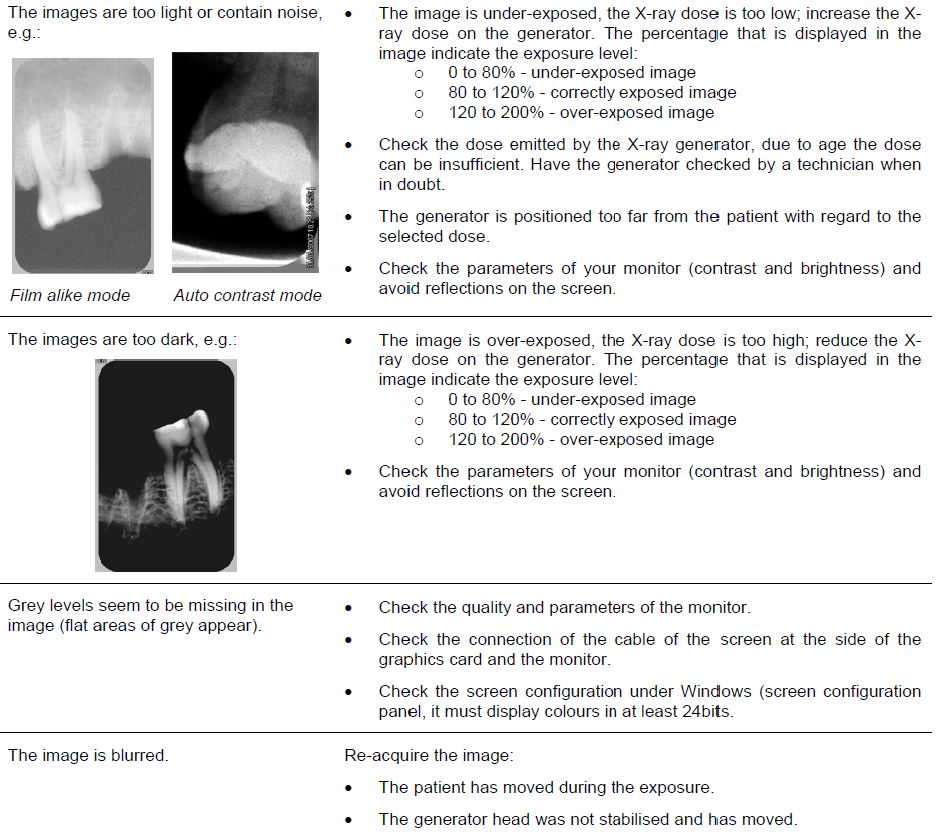

Below are the steps to follow to Troubleshoot issue of Under Exposure with Sensor:

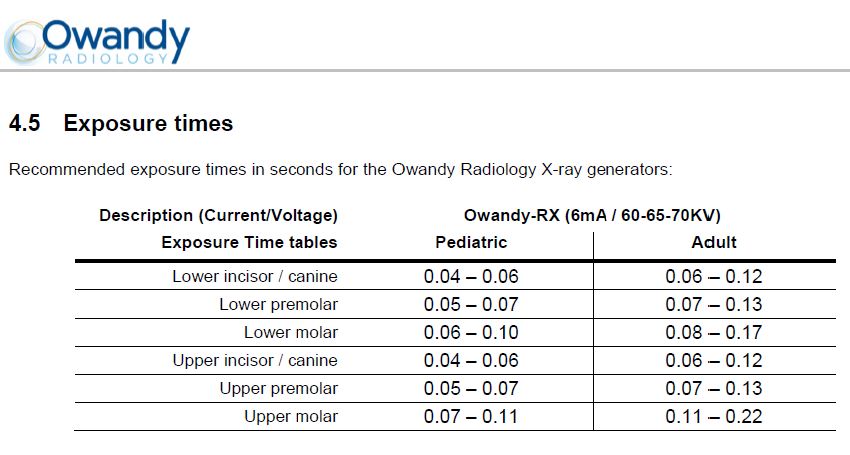

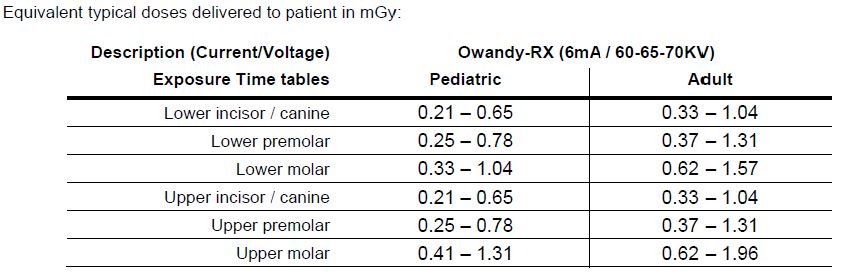

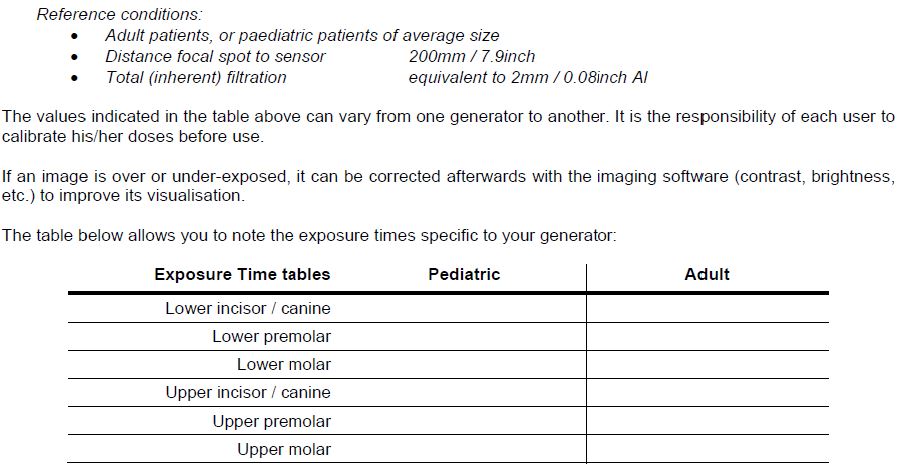

1. Please Follow Page 17 in Manual provided

Below is very important to Follow:

To Help address the challenges related to pediatric imaging, the user can refer to the following two sources:

1. The image Gently Back to Basics campaign materials:

• http://www.imagegently.org/Procedures/Digital-Radiography/Educational-Materials

2. The FDA Pediatric X-ray Imaging webpage:

• https://www.fda.gov/Radiation-EmittingProducts/RadiationEmittingProductsandProcedures/MedicalImaging/ucm298899.htm

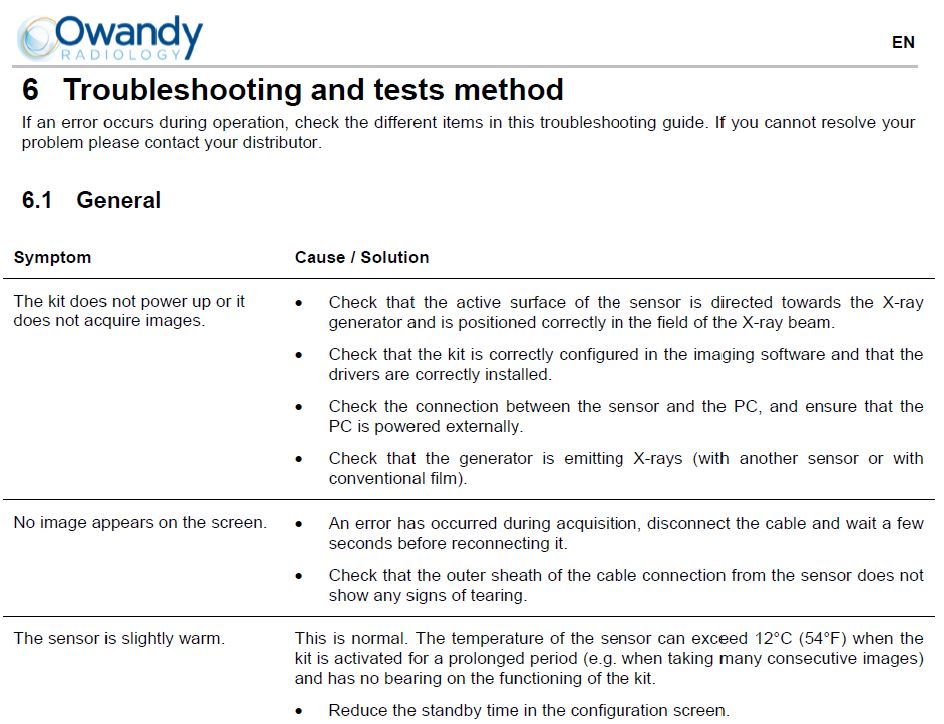

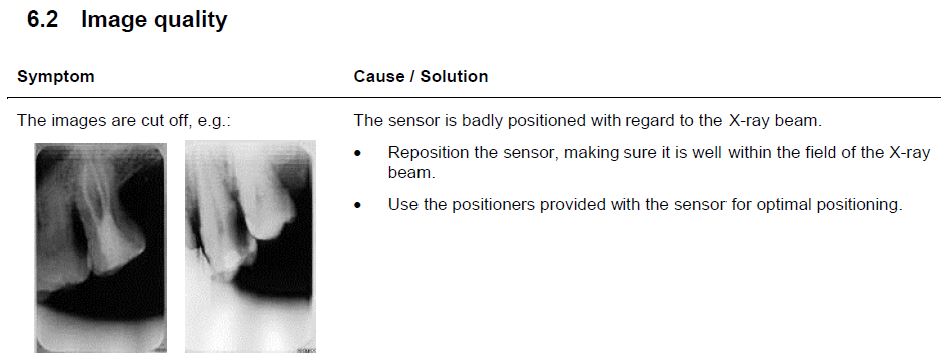

2. Please Follow Page 20 manual provided:

If you are still have issue with the sensor after you have follow this guide please email us back with the following information:

1. 10 Sample images

2. Serial Number of sensor

3. Doctor's name

4. Dealer name

5. A good email so that we can reach you at your convenience
